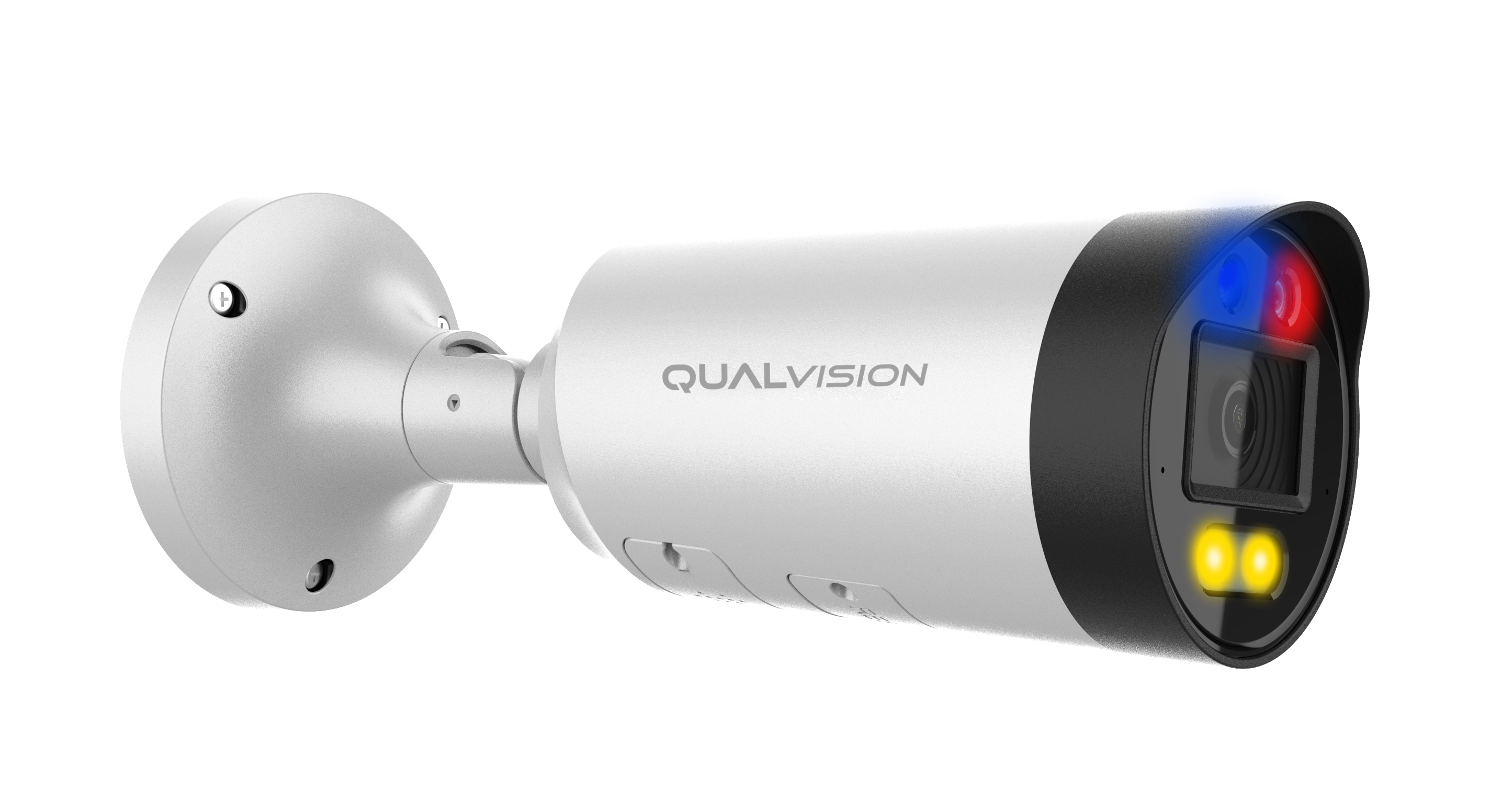

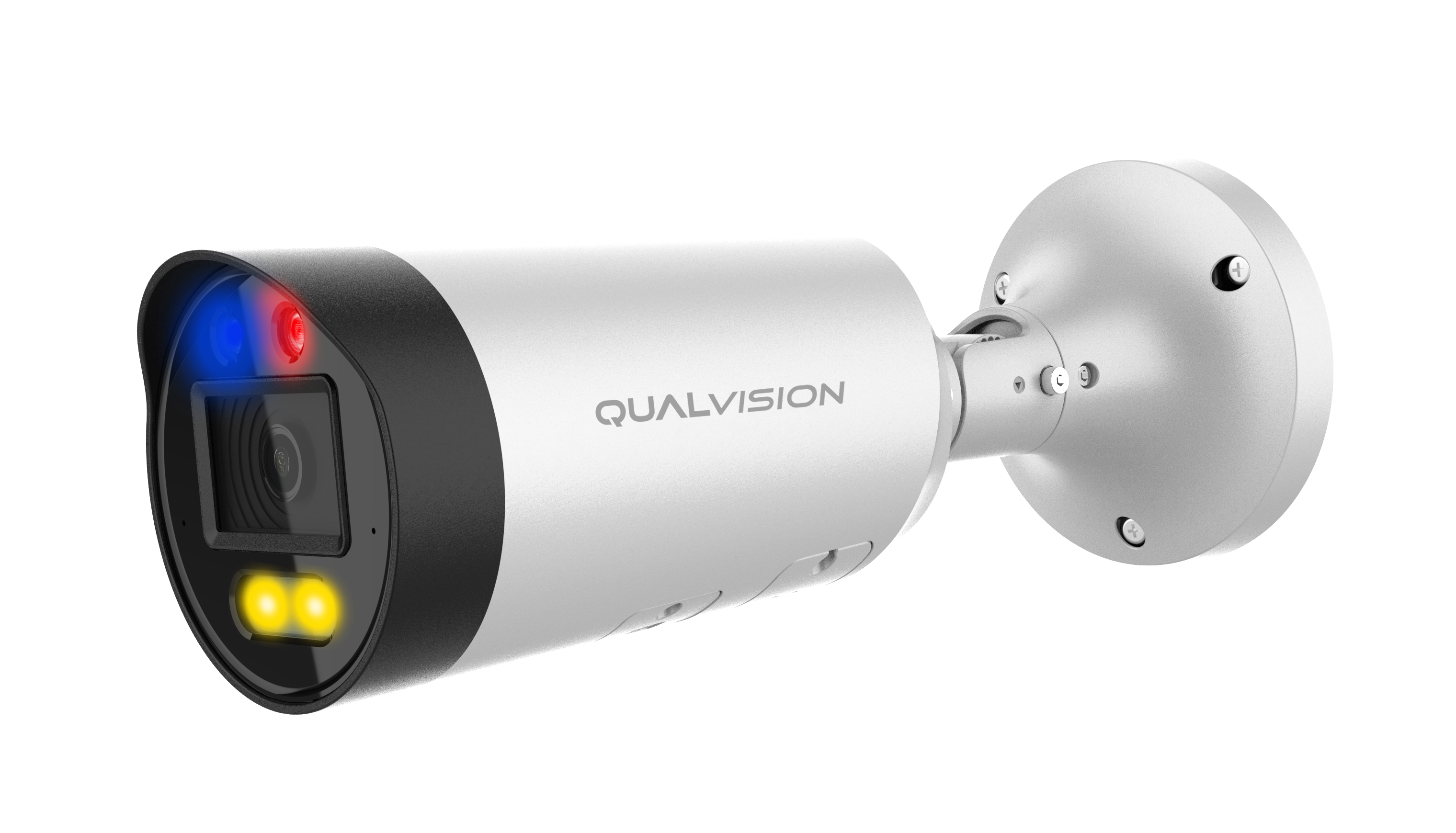

4MP Active Guard Fixed Bullet Network Camera
High-quality imaging with 4MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120dB WDR technology
Focus on human and vehicle targets classification based on deep learning

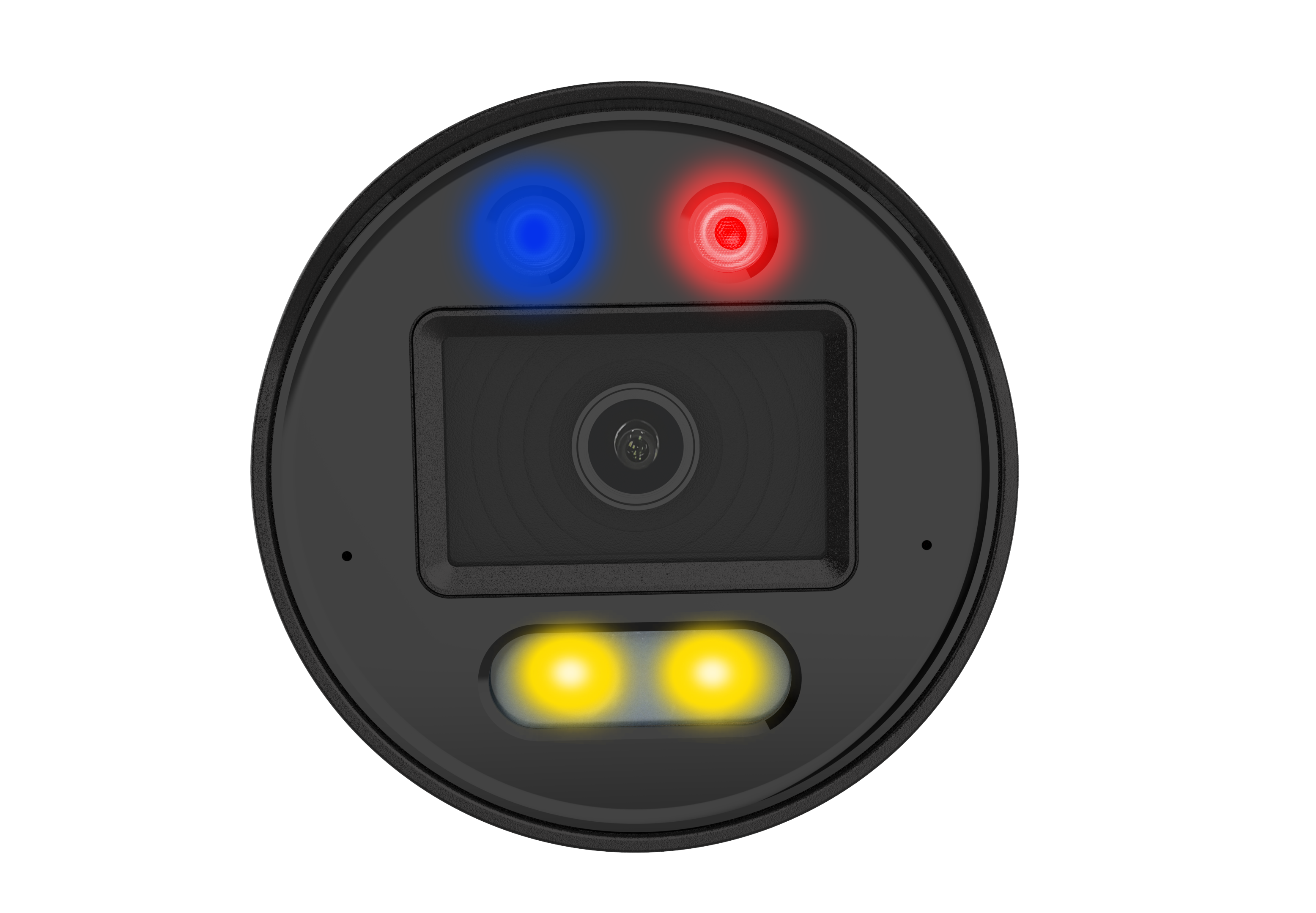

Active warm light and audio alarm to warn intruders off
Water and dust resistant (IP67)
Built-in microphone & speaker, audio and alarm interface available
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
|
Min. Illumination |
0.003 lux (Color), 0 lux (IR on) |
|
Illumination Distance |
30m (IR light) 30m (Warm light) |
|
Strobe Light |
N/A |
|
Smart IR |
Support |
|
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° |
|
Lens |
|
|
Focal Length |
2.8 mm |
|
Aperture |
F1.0 |
|
FOV |
2.8 mm @ F1.0 Horizontal FOV: 103°, Vertical FOV: 55°, Diagonal FOV: 122° |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8 mm, D: 67 m, O: 25.9 m, R: 13 m, I: 6.5 m |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main Profile |
|
Video Bit Rate |
11 Kbps ~ 10 Mbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A, G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
4M (2688 × 1520) |
|
Main Stream |
50Hz: 25fps 4M (2688 × 1520) 25fps 4M (2560 × 1440) , 25fps 1080P (1920 × 1080) 60Hz: 30fps 4M (2688 × 1520) 30fps 4M (2560 × 1440) , 30fps 1080P (1920 × 1080) |
|
Sub Stream |
50Hz: 25fps 720P (1280 × 720) 25fps D1 (704 × 576) , 25fps CIF ( 352 × 288) 60Hz: 30fps 720P (1280 × 720) 30fps D1 (704 × 480) , 30fps CIF ( 352 × 240) |
|
Third Stream |
50Hz: 25fps CIF (352 × 288) 60Hz: 30fps CIF (352 × 240) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
Shutter Time |
Auto/Manual, 1/3~1/100000s |
|
Day/Night |
IR cut filter |
|
Wide Dynamic Range |
120 dB |
|
Digital Noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
HLC |
Support |
|
ROI |
Support |
|
Rotate |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle) ), video shelter |
|
Smart Event |
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle) ) scene change detection, video blur detection |
|
Face Detection |
Support |
|
Network |
|
|
Network Storage |
NAS ( NFS, SMB/CIFS ) , ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
|
System Compatibility |
Onvif ( Profile S, Profile G, T ) , SDK |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|
User |
Up to 40 users |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 |
|
Mobile Surveillance |
IOS, Android |
|
Interface |
|
|
Communication interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board storage |
Up to 256GB |
|
MIC |
Support |
|
Speaker |
Support |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
Reset button |
Support |
|
General |
|
|
Operating Conditions |
-40°C ~ 60°C (-40°F ~ 140°F) |
|
Power Supply |
DC12V ± 25% |
|
POE |
PoE (802.3 af) |
|
Power Consumption |
MAX. 8.4 W |
|
Protection Level |
IP67 |
