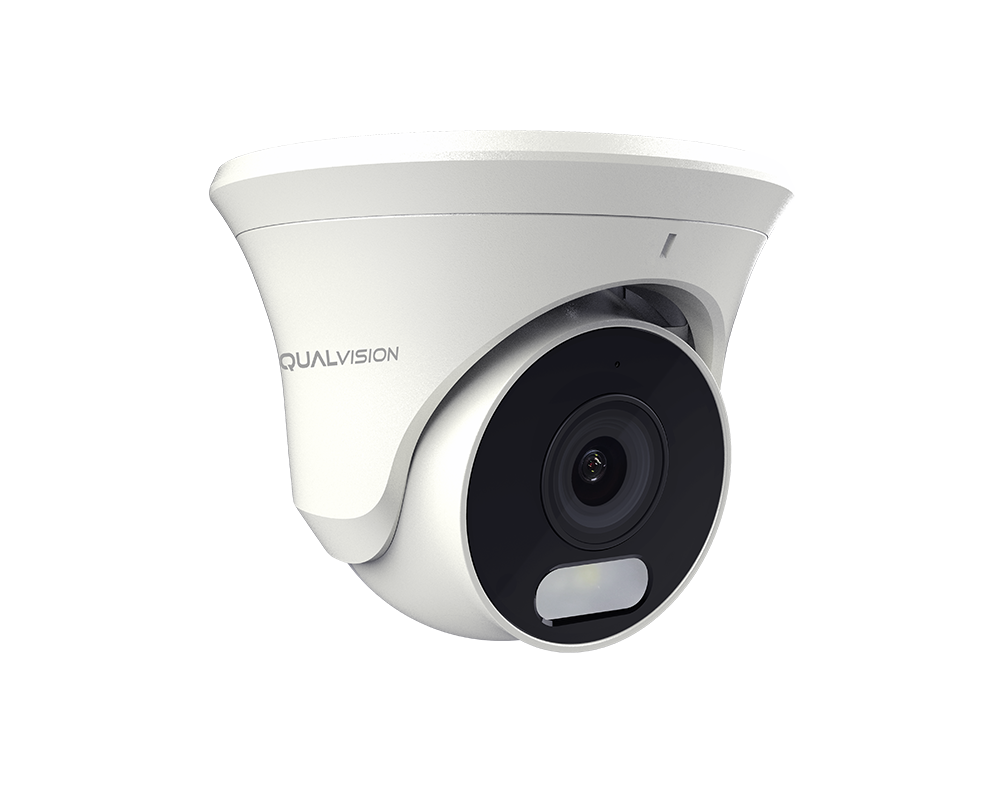

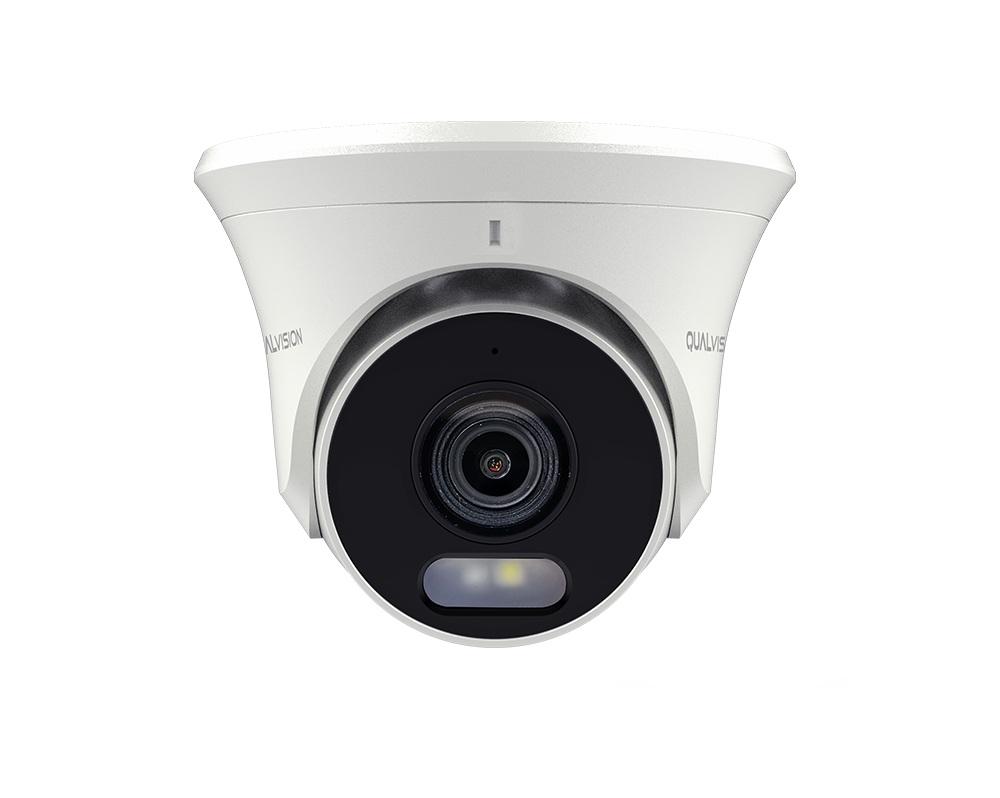

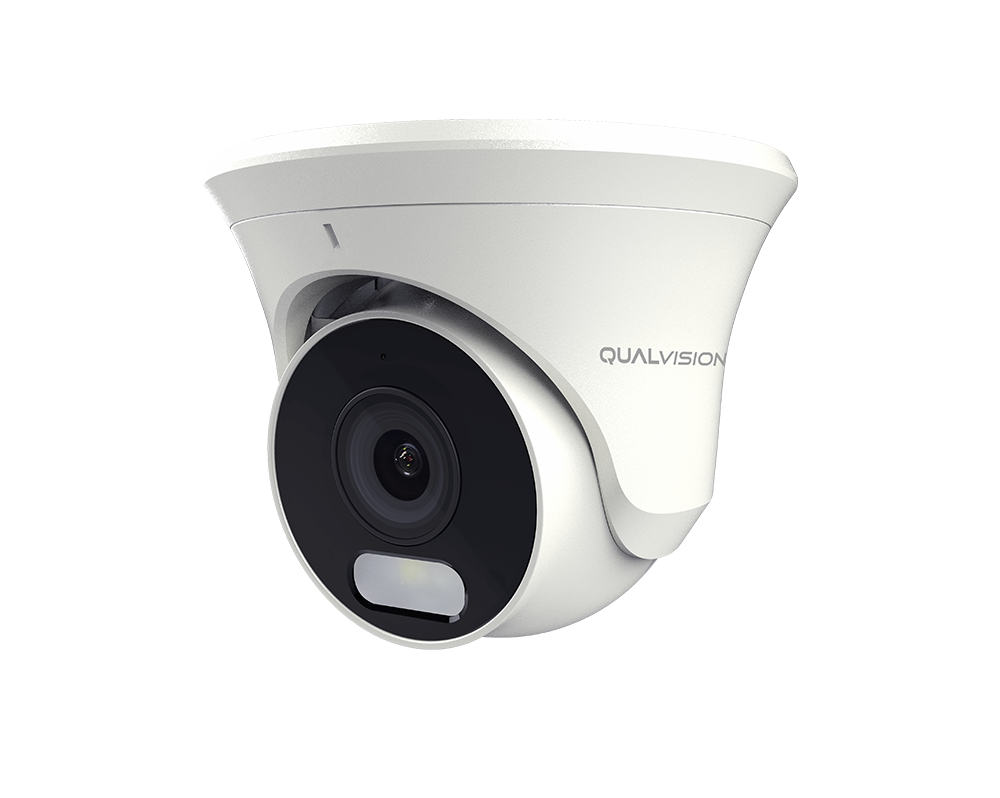

QV-IPC716261T9BR-FMUR16

Camera

Image Sensor

1/2.9" Progressive Scan CMOS Sensor

Min. Illumination

0.008lux (Color) , 0 Lux (IR on)

Illumination Distance

30 m (IR light)

30 m (warm light)

Strobe Light

N/A

Smart IR

Support

Pan/Tilt/Rotation Range

Pan: 0° ~ 360°

Tilt: 0° ~ 75°

Rotation: 0° ~ 360°

Lens

Focal Length

2.8/3.6 mm

Aperture

F1.6

FOV

2.8 mm @ F1.6 horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 120°

3.6 mm @ F1.6 horizontal FOV: 84°, vertical FOV: 43°, diagonal FOV: 100°

Lens Mount

M12

Compression Standard

Video Compression

H.264/H.264+/H.265/H.265+

H.264 Codec Profile

Base/Main/High profile

H.265 Codec Profile

Main profile

Video Bit Rate

11 Kbps ~ 6 Mbps

Triple Streams

N/A

Audio Compression

G.711A/G.711U

Audio Bit Rate

64 Kbps


Max. Image Resolution

1920 × 1080

Main Stream

50Hz: 25fps 1080P (1920 × 1080)

          25fps 960P (1280 × 960) , 25fps 720P (1280 × 720)

60Hz: 30fps 1080P (1920 × 1080)

          30fps 960P (1280 × 960) , 30fps 720P ( 1280 × 720)

Sub Stream

50Hz: 25fps D1 (704 × 576) , 25fps CIF (352 × 288)

60Hz: 30fps D1 (704 × 480) , 30fps CIF (352 × 240)

Third Stream

N/A

Image Setting

Brightness/Contrast/Saturation/Hue/Sharpness

Shutter Time

Auto/Manual, 1/3~1/10000s

Day/Night

IR Cut Filter

Wide Dynamic Range

DWDR

Digital Noise Reduction

2D/3D DNR

BLC

Support

HLC

Support

ROI

Support

Rotate

Support

Smart Feature

Basic Event

Motion detection (support alarm triggering by specified target types human), video shelter

Smart Event

Line crossing detection, area intrusion

Face Detection

N/A

Network

Network Storage

N/A

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility

Onvif (Profile G,Profile S,Profile T), CGI

Security

User authentication, IP address filtering, video mask

User

Up to 10 user

Web Browsers

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance

IOS, Android

Interface

Communication Interface

1 RJ45 10M / 100M Ethernet Port

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128GB

MIC

Support

Speaker

N/A

Audio I/O

N/A

Alarm I/O

N/A

Reset Button

Support

General

Operating Conditions

-30°C ~ 60°C (-22°F ~ 140°F)
Humidity 95% or less (non-condensing)

Power Supply

DC12V ± 10%

POE

PoE (802.3 af)

Power Consumption

MAX. 5.6W

Protection Level

IP67

Material

Metal + Plastic

Dimensions

Φ 103.5 × 83.6 mm (Φ 4.07'' × 3.29'')

Gross Weight

315 g (0.69 lb)
