QV-IPC618C1FY01-TPNMS

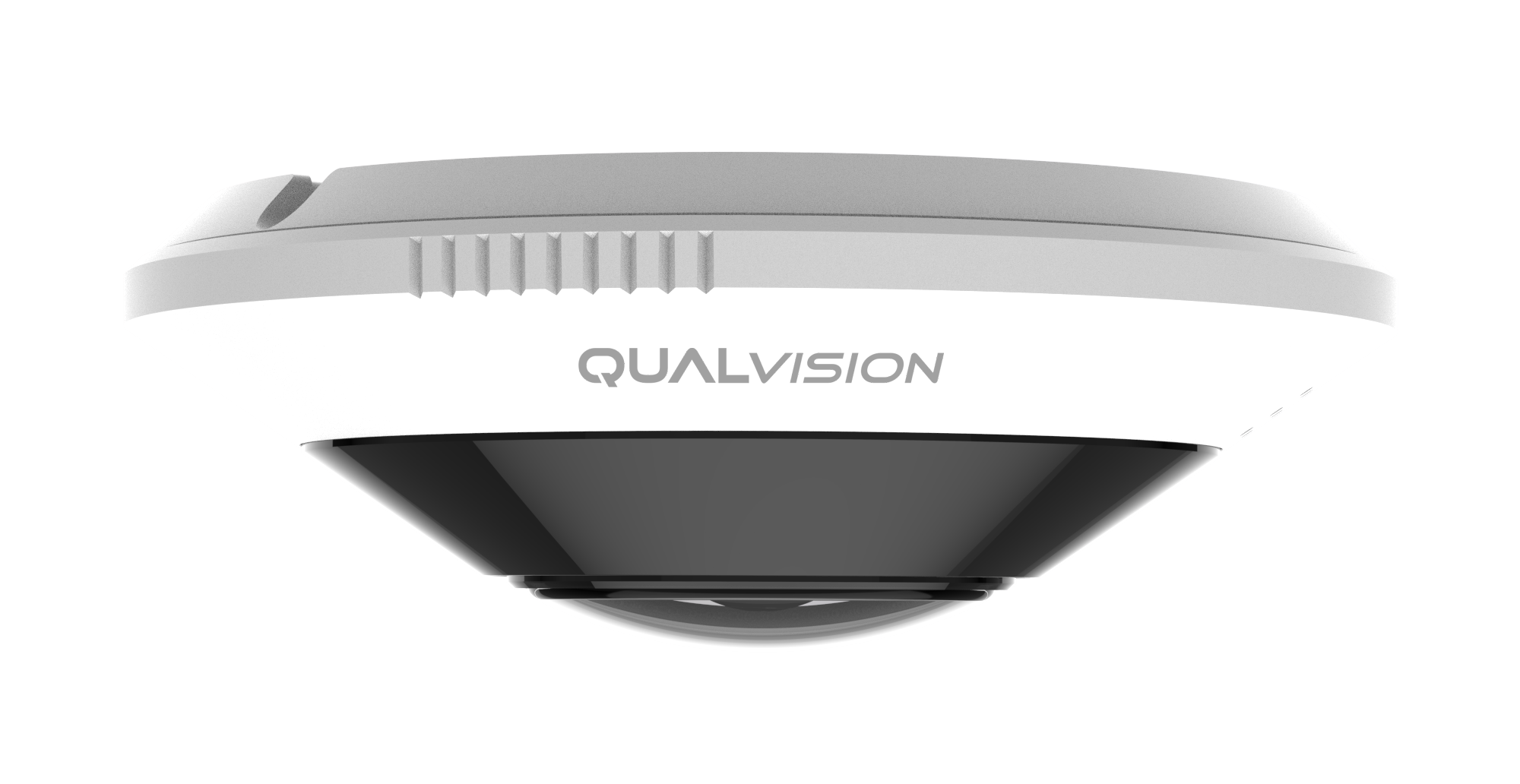

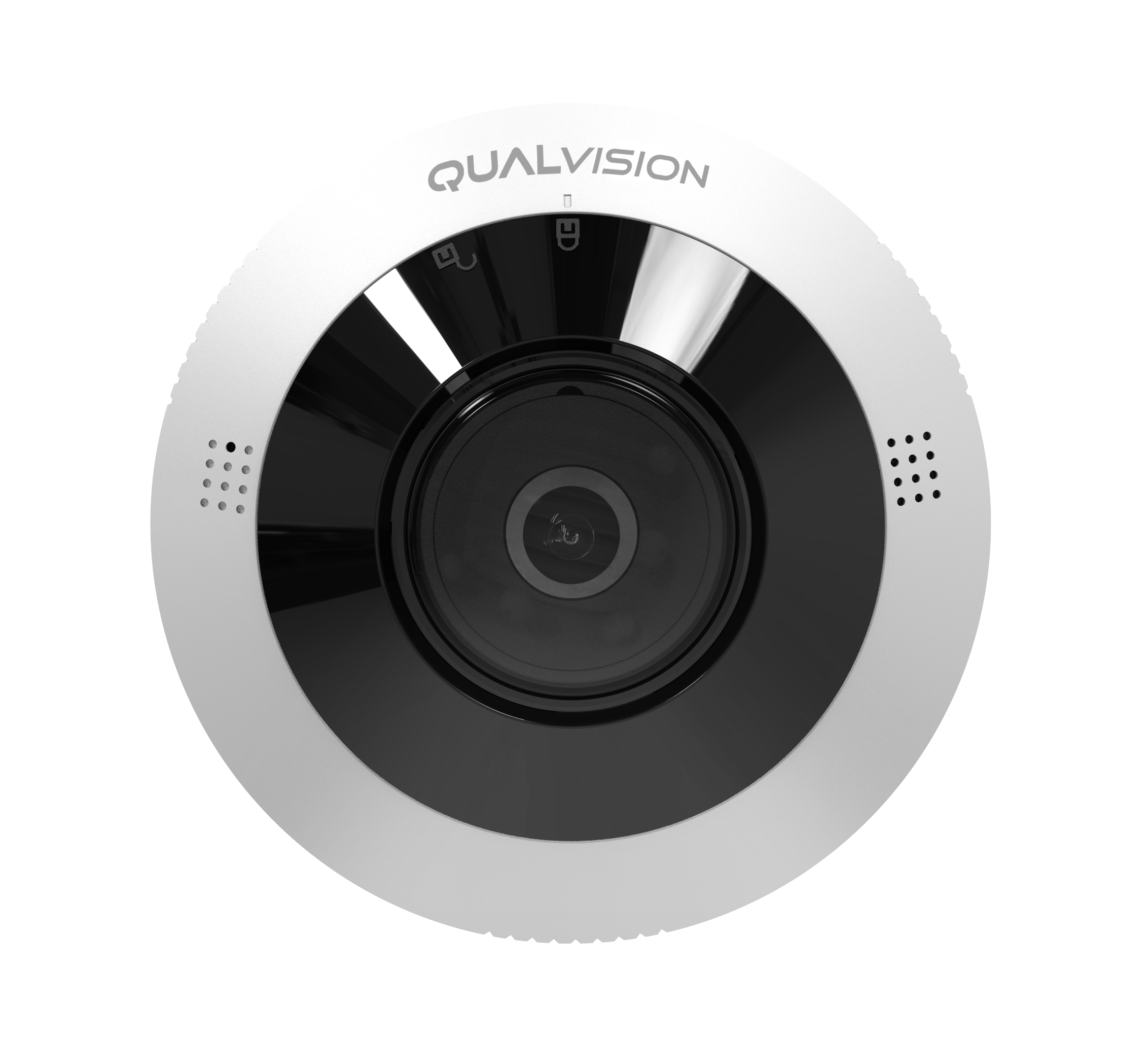

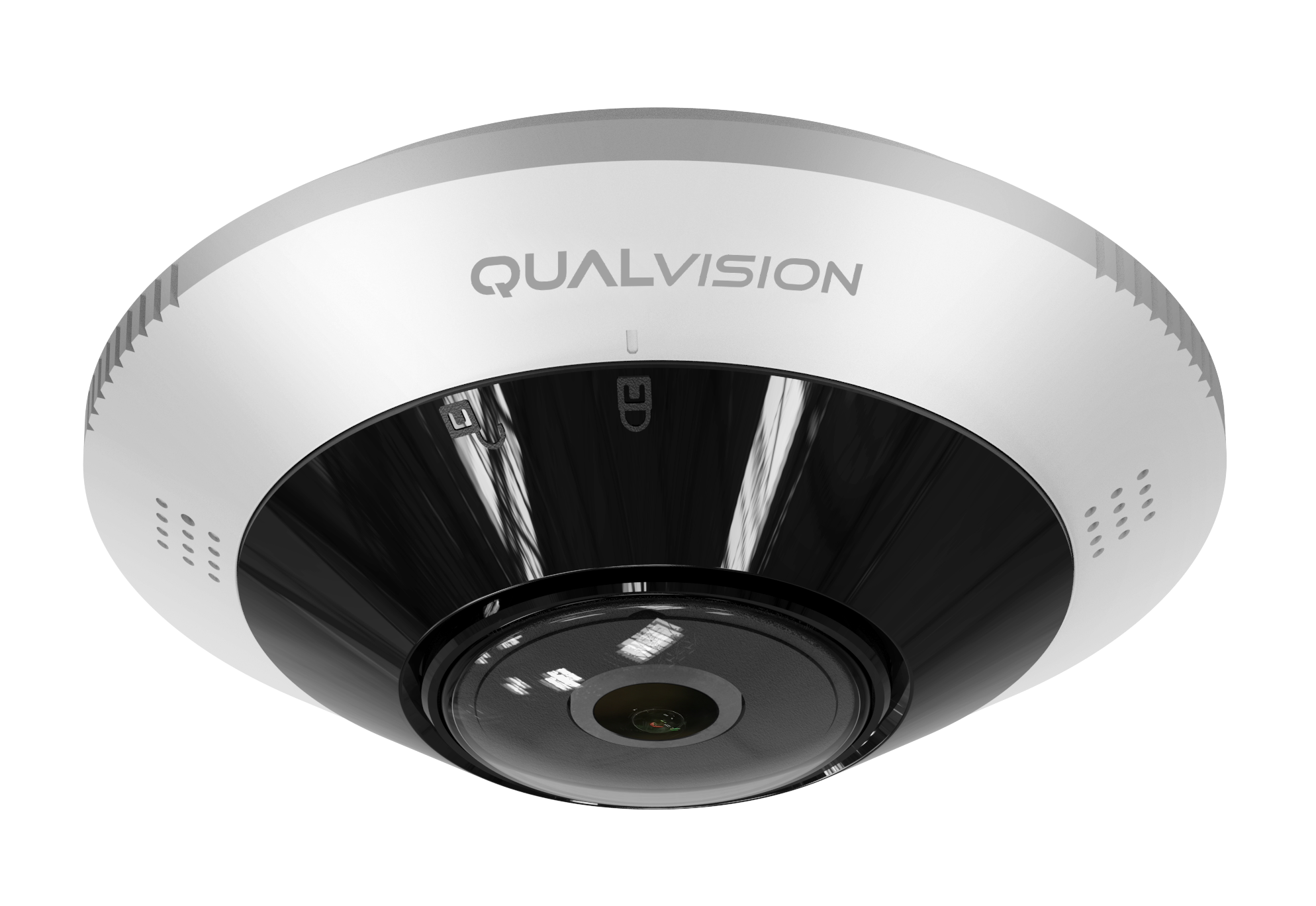

12MP Fisheye Camera

High quality imaging with 12MP resolution

Efficient H.265+ compression technology

Audio and alarm interface available

Multiple dewarp modes

Water and dust resistant (IP67）

Specification Download

Camera
Image Sensor	1/1.6" Progressive Scan CMOS
Min. Illumination	Color: 0.03 Lux @ F2.2 (AGC ON), B/W: 0.006 Lux @ F2.2 (AGC ON), B/W: 0 Lux with IR
Illumination Distance	IR: Up to 15 m
StrobeLight	N/A
Smart IR	Support
Shutter Time	N/A
Pan/Tilt/Rotation Range	N/A
Lens
Focal Length	2.3 mm
Aperture	F2.0
FOV	Horizontal FOV 185°, vertical FOV 185°
Lens Mount	M12
Compression Standard
Video Compression	H.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec Profile	Base/Main/High profile
H.265 Codec Profile	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Triple Streams	N/A
Audio Compression	G.711A, G.711U
Audio Bit Rate	64 Kbps
Main Stream	Fisheye	3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
	180 ° Panoramic	3072 × 2304, 2048 × 1536
	180° Dual Panorama	3072 × 1152
	Panoramic	3072 × 2304, 2048 × 1536
	4 PTZ	camera 01/camera 02/camera 03/camera 04: 1600 × 1200
	Fisheye + 3PTZ	camera 01: 2560×2560, 2048×2048, 1280×1280 camera 02/camera 03/camera 04: 1600×1200
	4 PTZ Fusion	3200×2400, 2048×1536
Sub Stream	Fisheye	720×720, 480×480
	180 ° Panoramic	640×480, 320×240
	180° Dual Panorama	640×480, 320×240
	Panoramic	640×360, 320×240
	4 PTZ	camera 01/camera 02/camera 03/camera 04: 640×480, 320×240
	Fisheye + 3PTZ	camera 01: 720×720 camera 02/camera 03/camera 04: 640×480, 320×240
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
Shutter Time	Auto/Manual, 1/3 ~ 1/100000s
Day/Night	IR cut filter
Wide Dynamic Range	DWDR
Digital noise reduction	2D/3D DNR
BLC	Support
HLC	Support
ROI	Support
Fisheye Display
Mount Type	Support wall/table/ceiling mounting
Decoding Mode	Support hardware decoding and software decoding
Display Mode	Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Smart Feature
Basic Event	Motion detection, video tampering
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
Face Detection	N/A
People Counting	Support
Heat Map	Support
Network
Network Storage	NAS ( NFS, SMB/CIFS ) , ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System Compatibility	Onvif ( Profile S, Profile G, T ), SDK
Security	Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User	Up to 40 Users
Web Browsers	Plug-in required live view: IE 10, IE 11 Plug-in-free live view: Chrome 57.0+, Firefox 52.0+/Safari Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance	iOS, Android
Interface
Communication interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-board storage	Up to 512GB
MIC	Support, built-in Mic
Speaker	Support
Audio I/O	1/1
Alarm I/O	2/2
Reset button	Support
Video Output	N/A
RS-485	Support
General
Operating Conditions	-40°C ~ 60°C ( -40°F ~ 140°F ) Humidity 95% or less ( non-condensing )
Power Supply	DC12V ± 25%
POE	PoE (802.3 af)
Power Consumption	12.5W
Protection Level	IP67
Material	Metal
Dimensions	Φ 152 mm × 53 mm (Φ 5.98'' × 2.08'')
Certifications	CE-EMC (Class A) FCC
Smart License	N/A
