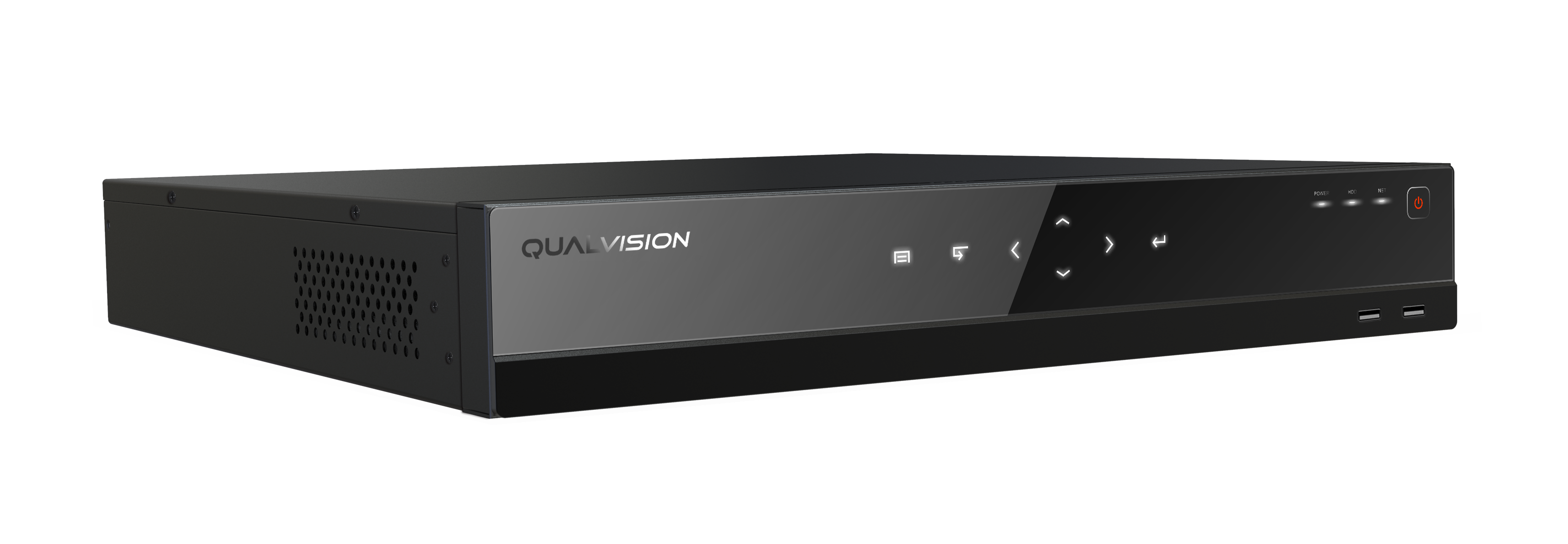

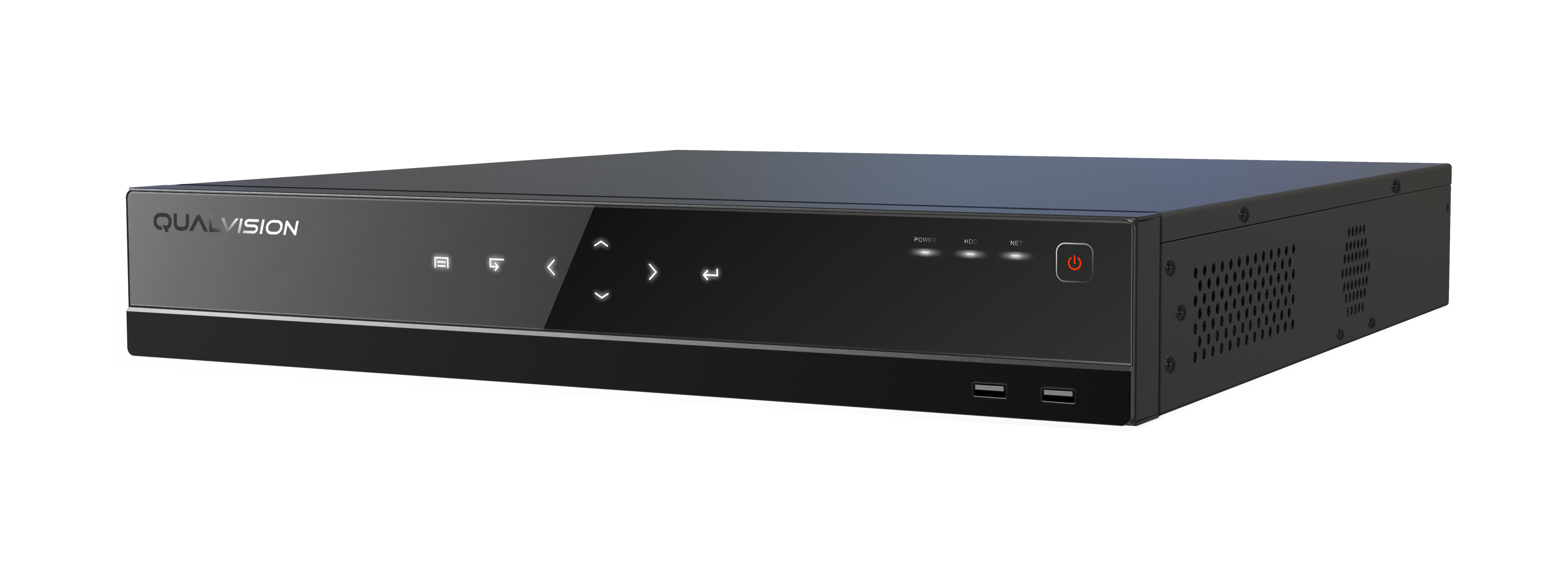

16 Channel 1.5U 4HDD Network Video Recorders
16CH IP Video input,up to 12M
H.265+/H.265 video compression
Incoming/Outgoing Bandwidth: 160M/256M
Playback: 16-ch 1080P @ 30fps (H.265)/6CH 5M @ 30fps/4-ch 4K @ 30fps/2-ch 12M @ 30fps
Supports mainstream cameras of ONVIF and RTSP protocol
HDMI 1/HDMI 2 Heterogeneous outputs, maximum resolution of HDMI is 4K
AI by Camera: SMD, perimeter protection, face detection, etc.
The terms HDMl and HDMI High-Definition Multimedia lnterface, and the HDMI Logo aretrade-marks or registered trademarks of HDMl Lcensing LLC in the United States and othercountries.
|
Video & Audio Input |
|
|
IP Video Input |
16-ch |
|
Audio Input |
1-ch, RCA |
|
Video & Audio Output |
|
|
HDMI |
HDMI 1 : 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI 2 : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
VGA |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
Audio Output |
2-ch, RCA |
|
Recording |
|
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Resolution |
12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
|
Playback & Backup |
|
|
Playback Resolution |
12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
|
Decoding Capability |
2-ch @ 12M 20fps 4-ch @ 8M 30fps 6-ch @ 5M 30fps 8-ch @ 4M 30fps 16-ch @ 1080P 30fps |
|
Synchronous Playback |
16-ch |
|
Playback Mode |
Smart Playback/Normal/Time Division/Label/Event/Picture Playback |
|
Backup Mode |
USB Device/Network/eSATA |
|
Advanced Features |
|
|
Smart Detection |
Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP |
|
Smart Playback |
Face detection/Line Crossing/Are Intrusion/Motion Detection/Human Detection/Vehicle Detection |
|
Cloud Storage |
Support |
|
Cloud Upgrade |
Support |
|
Network |
|
|
Incoming Bandwidth |
160Mbps |
|
Outgoing Bandwidth |
256Mbps |
|
Ethernet |
2 x RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
Network Function |
HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF |
|
Smart Phone |
IOS (iPhone, iPad), Android (Phone, Pad) |
|
Hard Disk |
|
|
SATA |
4 SATA interface |
|
Capacity |
Up to 18TB capacity for each HDD |
|
External Interface |
|
|
USB Interface |
Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
eSata |
1 x eSATA |
|
RS 485 |
2 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
General |
|
|
Power Supply |
AC 100 ~ 240V |
|
Power Consumption |
≤20W (without HDD) |
|
Working Environment |
-10°C ~ +55°C (14°F ~ 131°F)/10% ~ 90%RH |
|
Dimension (W×D×H) |
440 × 448 × 70 mm (17.32" × 17.64" × 2.76") |
|
Weight |
6.1 KG (13.44 lb) |
