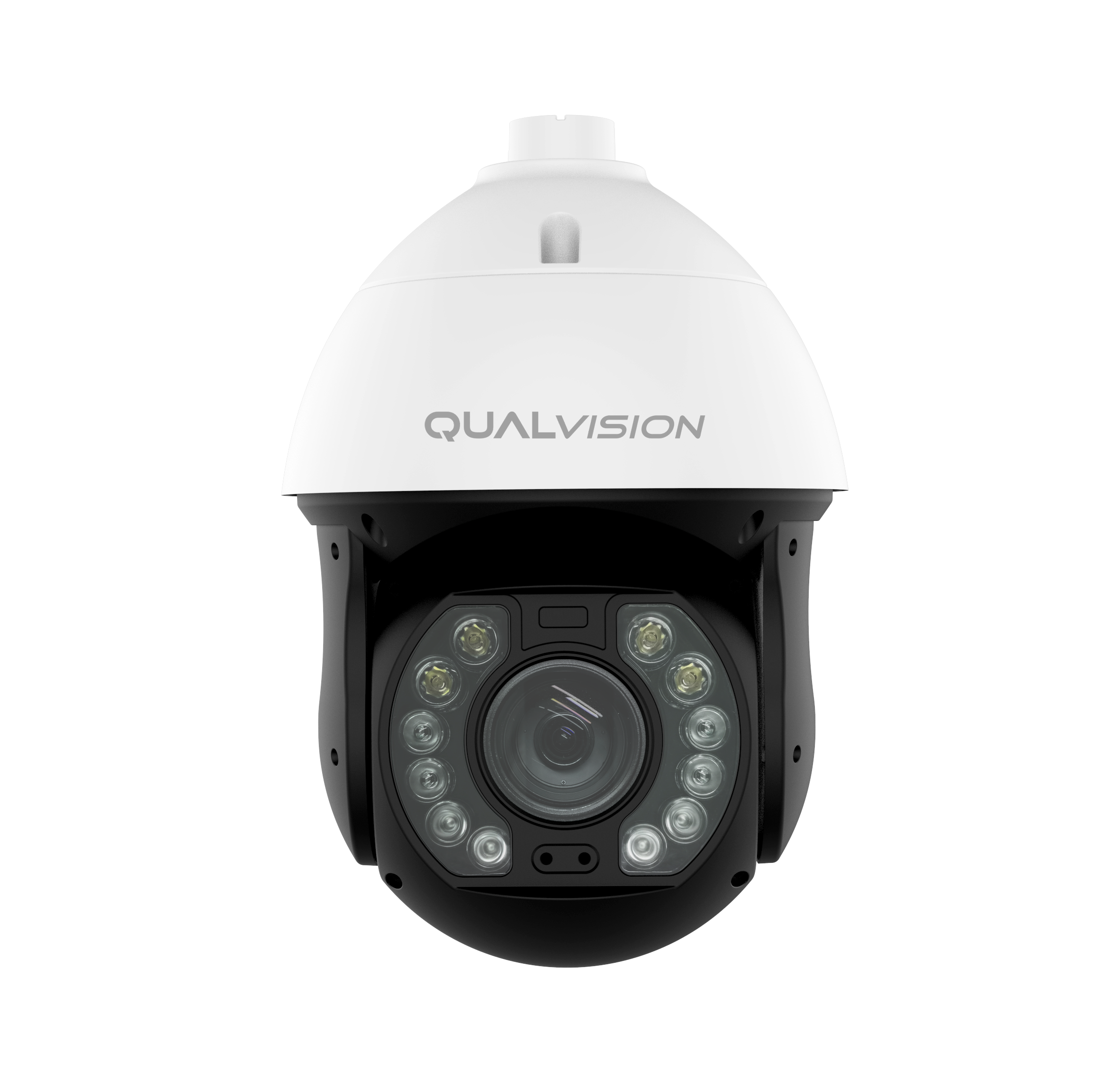

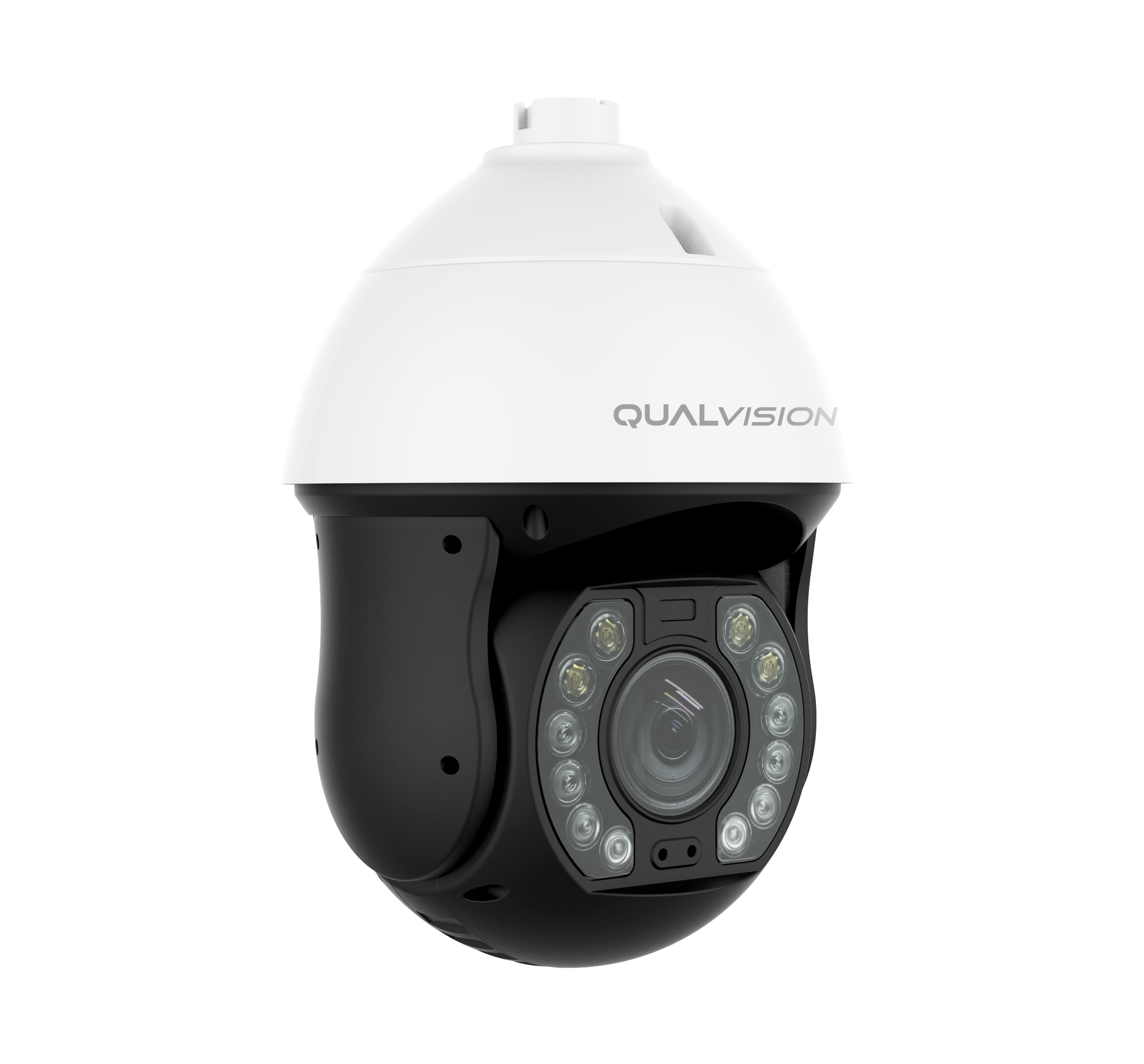

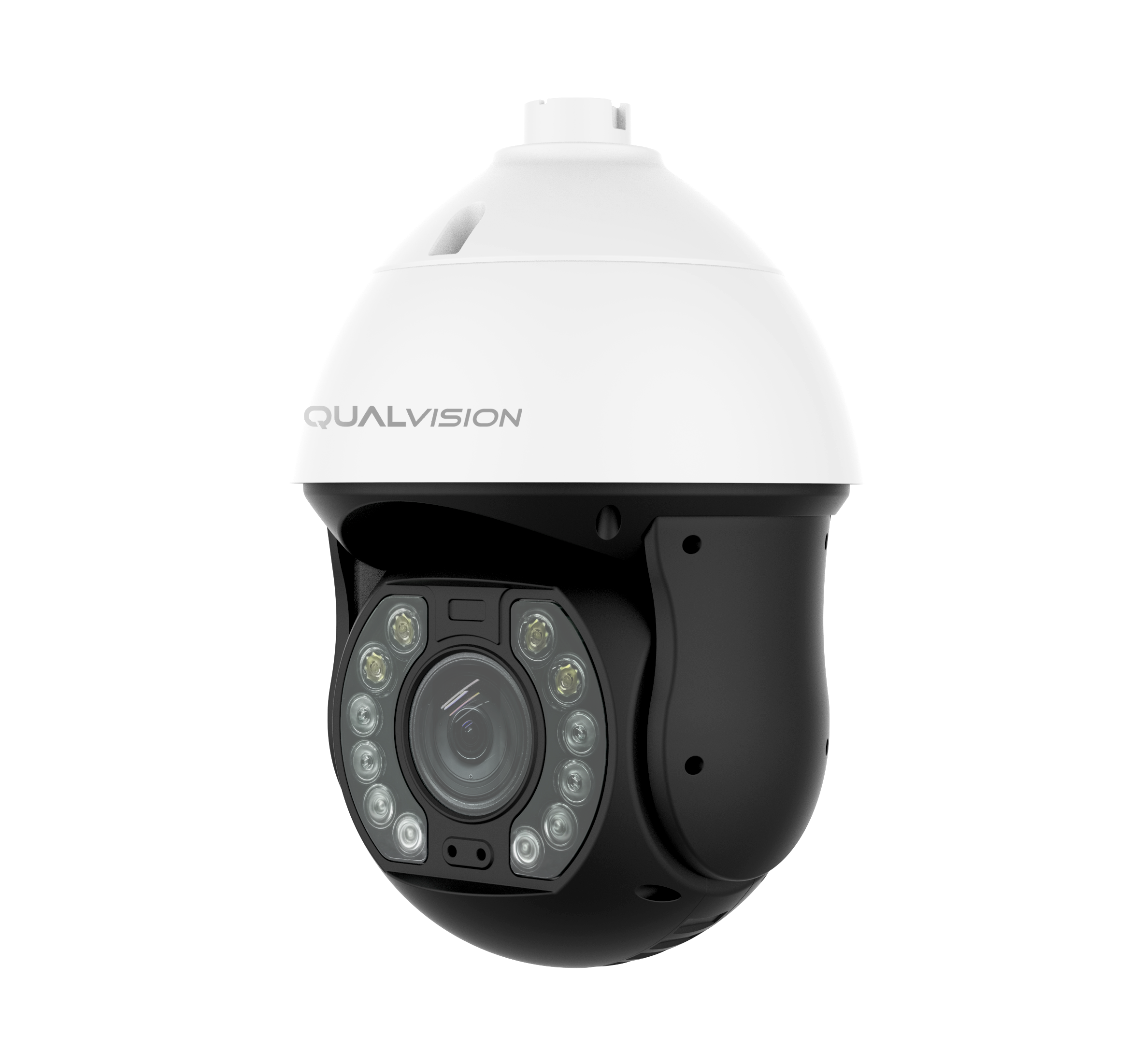

8-inch 8MP 38X Network Speed Dome
High quality imaging with 8MP resolution
38× optical zoom, provides close-up details
Clear imaging against strong backlight due to 120 dB WDR technology
Auto tracking
IR range up to 250M
iQSense technology: Focus on real threats by detecting humans/vehicles only, and filter out other moving objects
|
Camera |
|
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
|
Min. Illumination |
0.002 lux ( ICR ON, AGC ON ) |
|
Illuminator Number |
8 (IR light) |
|
Illumination Distance |
250 m (IR) |
|
Smart IR |
Support |
|
Shutter Time |
Auto/Manual, 1/3 ~ 1/10000s |
|
Slow Shutter |
Support |
|
Day/Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120dB |
|
Digital Noise Reduction |
2D/3D DNR |
|
Starlight |
Support |
|
Lens |
|
|
Focal Length |
38× optical zoom/16× Digital Zoom , 5.7 ~ 216.6 mm |
|
Aperture |
F1.55 ~ F4.8 |
|
Pan & Tilt |
|
|
Pan Range |
360°endless |
|
Pan Speed |
-0.8°～160°/S |
|
Tilt Range |
-10°-90° (Auto Flip ) |
|
Tilt Speed |
-1.4°～66°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
255 |
|
Power loss recovery |
Support |
|
Patrol |
32 automatic patrols |
|
Pattern |
8 patterns |
|
Compression Standard |
|
|
Video Compression |
H.264/H.264+/H.265/H.265+/MJPEG |
|
H.264 Codec Profile |
Base/Main/High profile |
|
H.265 Codec Profile |
Main profile |
|
Video Bit Rate |
11Kbps ~ 16MKbps |
|
Triple Streams |
Support |
|
Audio Compression |
G.711A/G.711U |
|
Audio Bit Rate |
64 Kbps |
|
Image |
|
|
Max. Image Resolution |
8MP (3840 × 2160) |
|
Main Stream |
50Hz: 25fps 8MP (3840 × 2160) |
|
Sub Stream |
50Hz: 25fps 720P (1280 × 720) |
|
Third Stream |
50Hz: 25fps CIF (352 × 288) |
|
Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
|
BLC |
Support |
|
ROI |
Support |
|
Defog |
Support |
|
Smart Feature |
|
|
Basic Event |
Motion detection,video tampering |
|
Smart Event |
Smart motion detection, line crossing detection, area intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle), unattended object, object missing, fast moving, loitering detection, people gathering detection, parking detection, blurred detection, scene change detection, audio exception detection, crossing line statistics |
|
Auto tracking |
Support |
|
Face Detection |
Support |
|
Network |
|
|
Network Storage |
NAS (NFS/CIFS) ,ANR |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour |
|
System Compatibility |
Onvif, Profile S, CGI |
|
Security |
User authentication, IP address filtering, Video mask |
|
User |
40 |
|
Web Browsers |
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|
Mobile Surveillance |
IOS, Android |
|
Interface |
|
|
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board storage |
Up to 256GB |
|
MIC |
N/A |
|
Speaker |
N/A |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
Reset Button |
Support |
|
General |
|
|
Operating Conditions |
(-30 °C ~ 60 °C) (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply |
DC36V |
|
POE |
PoE (802.3 at) |
|
Power Consumption |
MAX. 25 W |
|
Protection Level |
IP66 |
|
Protection |
6000V lightning protection, surge protection and anti-surge protection |
|
Dimensions |
Φ 237 × 353.5 mm (9.33'' × 13.91'') |
|
Gross Weight |
7.39 KG (16.29 lb) |
