QV-IPC91381AT9K-TPMUSD

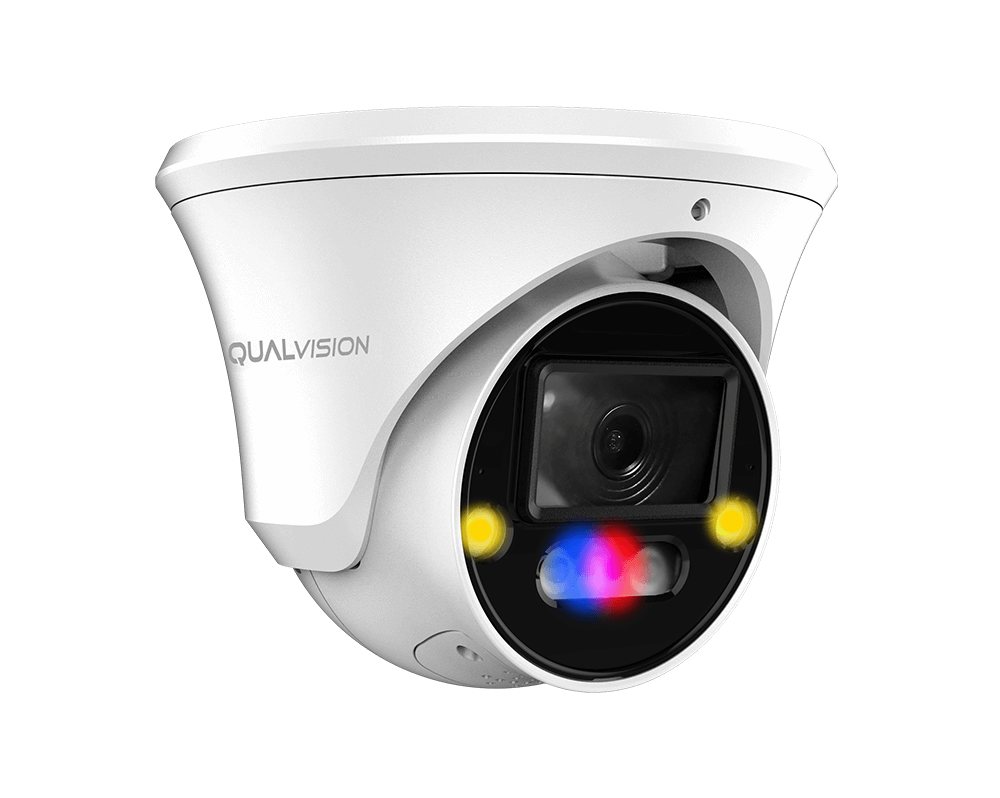

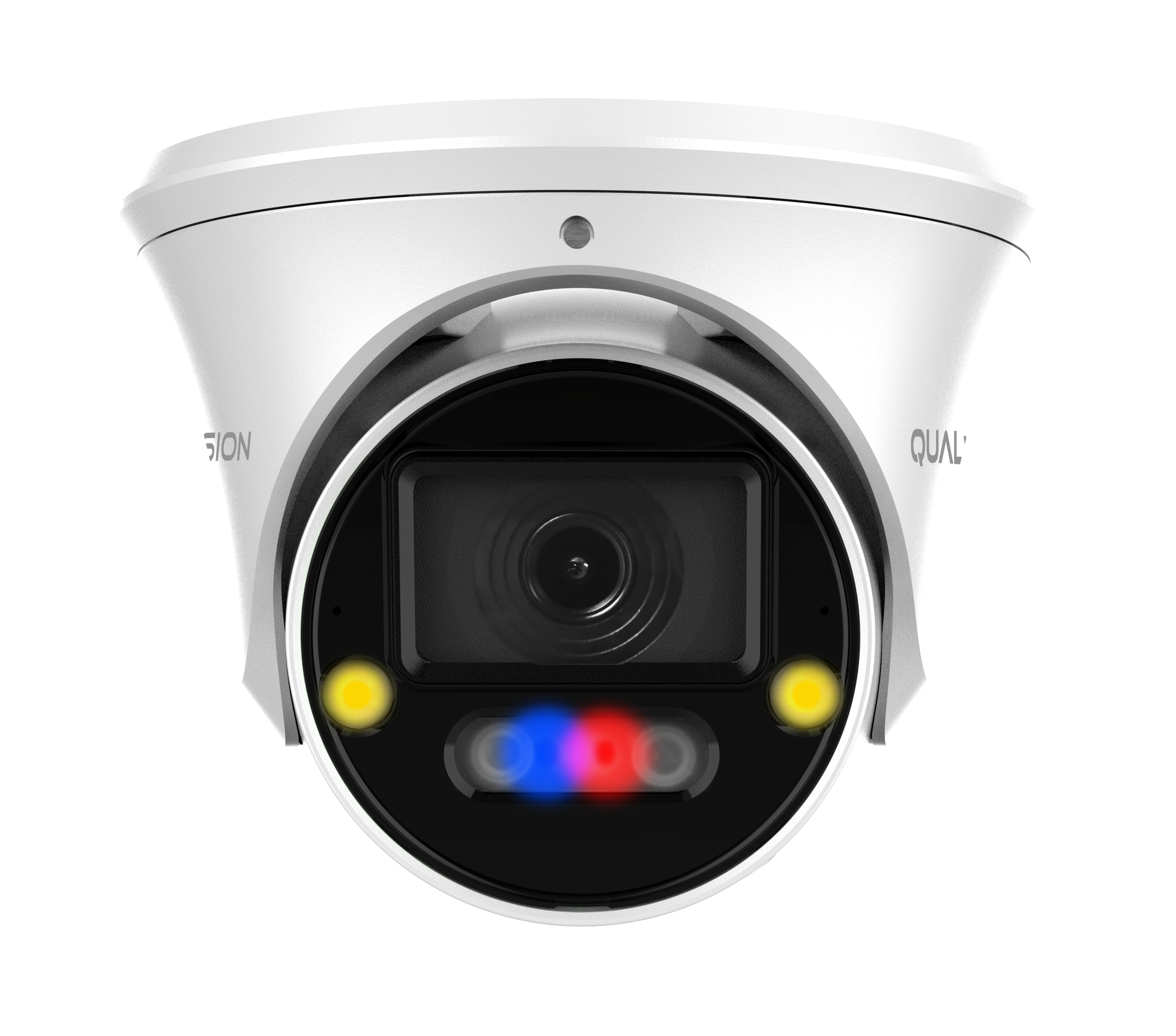

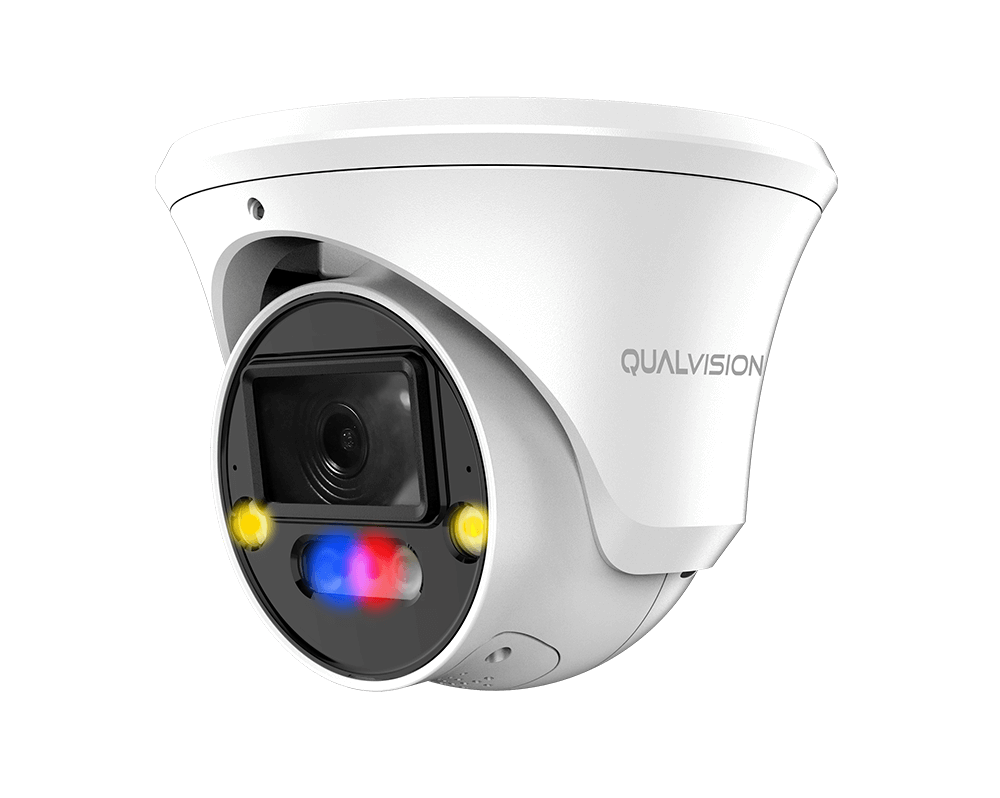

8MP Active Deterrence Fixed Turret Network Camera

High quality imaging with 8MP resolution

Efficient H.265+ compression technology

Clear imaging against strong backlight due to 120dB WDR technology

Focus on human and vehicle targets classification based on deep learning

Active warm light and audio alarm to warn intruders off

Water and dust resistant (IP67)

Built-in microphone & speaker, audio and alarm interface available

Specification Download Accessories

Camera
Image Sensor	1/2.8" Progressive Scan CMOS Sensor
Min. Illumination	0.003 lux (Color), 0 lux (IR on)
Illumination Distance	30m (IR light)
Illumination Distance	30m (Warm light)
Strobe Light	N/A
Smart IR	Support
Pan/Tilt/Rotation Range	Pan: 0° ~ 360°
	Tilt: 0° ~ 75°
	Rotation: 0° ~ 360°
Lens
Focal Length	2.8 mm
Aperture	F1.0
FOV	2.8 mm @ F1.0 horizontal FOV：105° , vertical FOV：56°diagonal FOV：126°
Lens Mount	M12
DORI
DORI	2.8 mm, D: 94 m, O: 36.7 m, R: 18.4 m, I: 9.2 m
Compression Standard
Video Compression	H.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec Profile	Base/Main/High profile
H.265 Codec Profile	Main Profile
Video Bit Rate	11 Kbps ~ 16 Mbps
Triple Streams	Support
Audio Compression	G.711A, G.711U
Audio Bit Rate	64 Kbps
Max. Image Resolution	8MP (3840 × 2160)
Main Stream	50Hz: 25fps 8MP (3840 × 2160) , 25fps 6MP (3200 × 1800) , 25fps 5MP (3072 × 1728) 25fps 4MP (2560 × 1440) , 25fps 1080P(1920 × 1080)
Main Stream	60Hz: 30fps 8MP (3840 × 2160) , 30fps 6MP (3200 × 1800) , 30fps 5MP (3072 × 1728) 30fps 4MP (2560 × 1440) , 30fps 1080P (1920 × 1080)
Sub Stream	50Hz: 25fps 720P (1280 × 720) 25fps D1 (704 × 576) , 25fps CIF (352 × 288) (Default D1)
Sub Stream	60Hz: 30fps 720P (1280 × 720) 30fps D1 (704 × 480) , 30fps CIF (352 × 240)
Third Stream	50Hz: 25fps CIF (352 × 288)
Third Stream	60Hz: 30fps CIF (352 × 240)
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
Shutter Time	Auto / Manual, 1/3~1/100000s
Day/Night	IR cut filter
Wide Dynamic Range	120 dB
Digital Noise Reduction	2D/3D DNR
BLC	Support
HLC	Support
ROI	Support
Rotate	Support
Smart Feature
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle) ), Video Shelter
Smart Event	Line crossing detection, Area intrusion, Region Entrance, Region Exiting (support alarm triggering by specified target types (human and vehicle) )
Smart Event	Scene Change Detection, video blur detection
Face Detection	Support
Network
Network Storage	NAS (NFS, SMB/CIFS) , ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System Compatibility	Onvif (Profile S, Profile G, T) , SDK
Security	Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User	Up to 40 users
Web Browsers	Plug-in required live view: IE 10, IE 11
Web Browsers	Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance	IOS, Android
Interface
Communication interface	1 RJ45 10 M/100 M self-adaptive ethernet port
On-board storage	Up to 256GB
MIC	Support
Speaker	Support
Audio I/O	1/1
Alarm I/O	1/1
Reset button	Support
General
Operating Conditions	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%
POE	PoE (802.3 af)
Power Consumption	MAX. 9.5 W
Protection Level	IP67
Material	Metal
Dimensions	Φ 144.5 × 113.5mm (Φ 5.68'' × 4.47'')
Gross Weight	1045 g (2.30 lb)
