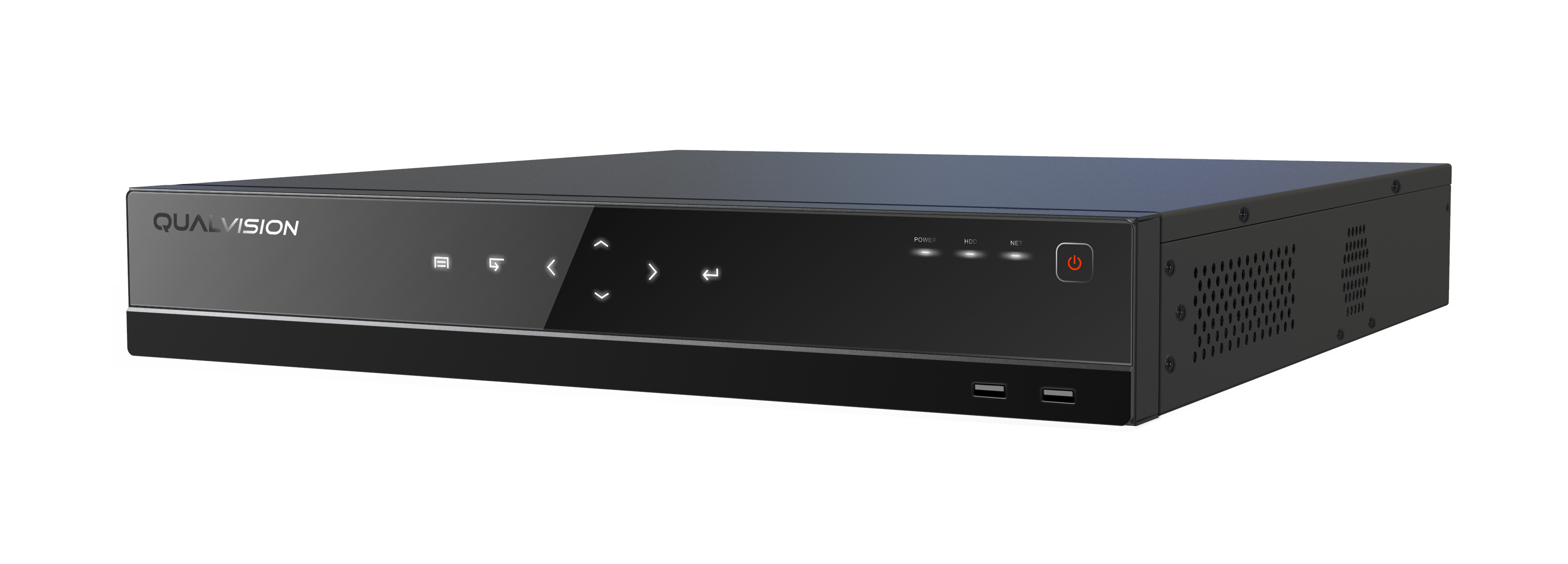

QV-NVR6CB32PP-V15

32 Channel 1.5U 4HDD Network Video Recorders

32-ch IP Video input, up to 12MP

H.265+/H.265 video compression

Incoming/Outgoing Bandwidth: 256M/256M

Playback:16-ch 1080P @ 30fps/8-ch 4M @ 30fps/6-ch 5M @ 30fps/4-ch 4K @ 30fps

Supports mainstream cameras of ONVIF and RTSP protocol

Supports 16 ports POE

HDMI® maximum resolution is 4K

AI by Camera: SMD, perimeter protection, face detection, etc

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specification Download

Video & Audio Input
IP Video Input	32-ch
Audio Input	1-ch, RCA (Linear, 1kΩ)
Video & Audio Output
Video Output Mode	1-ch VGA, 1-ch HDMI video output
	Simultaneous	max. resolution of HDMI1 is 4K max. resolution of VGA1 is 1080p
	Heterologous	Heterologous video source output for HDMI1 and VGA1 max. resolution of HDMI1 is 4K max. resolution of VGA1 is 1080p
Audio Output	1-ch, RCA (Linear, 1kΩ)
Recording
Compression	H.265+/H.265/H.264+/H.264
Resolution	12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF
Bit Rate per Channel	64Kbps ~ 10Mbps
Playback & Backup
Playback Resolution	12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF /QCIF
Decoding Capability	2-ch @ 12M 20fps 4-ch @ 8M 30fps 6-ch @ 5M 30fps 8-ch @ 4M 30fps 16-ch @ 1080P 30fps
Synchronous Playback	16-ch
Playback Mode	Smart Playback/Normal/Time Division/ Label/ Event
Backup Mode	USB Device/Network/eSATA
Advanced Features
Smart Detection	Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP
Smart Playback	Face detection/Line Crossing/Are Intrusion/Motion Detection/Human Detection/Vehicle Detection
Cloud Storage	Support
Cloud Upgrade	Support
Network
Incoming Bandwidth	256Mbps
Outgoing Bandwidth	256Mbps
Ethernet	1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Network Function	HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF
Smart Phone	IOS (iPhone, iPad), Android (Phone, Pad)
Hard Disk
SATA	4 SATA interfaces
Capacity	Up to 18TB capacity for each HDD
External Interface
POE Port	16 independent 10/100Mbps PoE Ethernet interfaces
USB Interface	Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
eSata	1 x eSATA
RS 485	2
Alarm In	16-ch
Alarm Out	4-ch
General
Power Supply	AC 100 ~ 240V
Power Consumption	≤20W (without HDD and POE)
Working Environment	-10°C ~ +55°C (14°F ~ 131°F) /10% ~ 90%RH
Dimension (W×D×H)	440 × 448 × 70 mm (17.32" × 17.64" × 2.76")
Weight	6.4 KG (14 .10 lb)
